Liebert UPS

SKU GXT5-10KIRT5UXLN ( Liebert GXT5 10kVA )

Model   Liebert GXT5: On-Line 10000VA/10000W 230V, LCD, PF1.0, 5U, Extended Run Rack/Tower,
Rail Kit Bundled, Web Card (RDU101) bundled, Integrated Maintenance Bypass
Output Power Capacity 10000Watt / 10000VA
Nominal Output Voltage 230 VAC
Topology True Online
Input voltage range (VAC) 230 VAC
Frequency Range   50Hz or 60Hz
Waveform Sine wave
Battery Type Valve-regulated, non-spillable, lead acid
Qty x V x Rating    2 x 8 x 12V x 9.0 AH
Nominal Factory Default is 50
Height 217 mm
Width 430 mm
Depth 630 mm
Weight 74.5 kg
Part number
Warranty 2 Years Onsite Replacement Warranty, not include rural area and Pattani, Ya-La, Narathiwas
Liebert GXT5-10KIRT5UXLN - 10Kva UPS true online . It's really good for server, long backup time
Extended Battery Cabinet for
GXT5-5000VA, 6000VA, 8000VA and 10000VA,
3U, Rail Kit Bundled
P/N 02312376

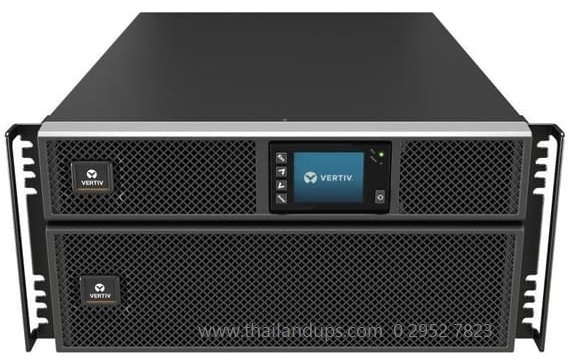

The Liebert® GXT5™ UPS is a single phase, online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. The new Liebert® GXT5™ from Vertiv™ is an advanced version of the widely-regarded GXT UPS Series. GXT5 is ideally suited to protect critical infrastructure in both centralized and edge network applications.

Best Suited For:

Banking, Financial and Insurance Data Center/Colocation/Hosting Education Government Healthcare Manufacturing Retail and Wholesale Telecom Transportation
Warranty: 2 Years Warranty


Available in 750VA/1/1.5/2/3/5/6/8/10/16/20kVA
Top-level on-line double conversion UPS for mission-critical application
Unity output power factor
LCD multi-language color display (gravity sensing)
On-line (VFI) mode efficiency up to 95.9% at full load
Active ECO mode efficiency up to 99%
Energy Star 2.0 certified
Controllable and programmable output sockets
Integrated solution with batteries and electronics
External battery cabinets auto-detection
Operates at full power up to 40°C (up to 50°C with derating)
Intelligent Communication ready
Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability


Power Rating 10, 000 VA / 10,000 W
Input Voltage 230 VAC
Output Voltage 230 VAC
Efficiency 95%
