APC Back-UPS 500
Affordable Battery Backup For Home and Office Computers.
Extreme voltage fluctuations, surges and unexpected power outages can damage today's desktop computers and even worse - cause loss of your valuable data. APC's Back-UPS RS 500 provides you with enough backup power to work through short and medium length power outages. It also protects your system from damaging surges and spikes that travel along utility lines. The RS 500 also features “boost” automatic voltage regulation (AVR), which instantly adjusts low voltages to safe levels, so you can work indefinitely during undervoltage situations. Additional standard features make the RS 500 the perfect unit to protect your productivity from the constant threat of power problems and lost data.
Product Features & Benefits:
1. Automatic Diagnostic Testing ensures your unit is ready when you need it.
2. Combination Power Button/LED Indicator provides visual and audible status of unit.
3. 3 “Battery Backup & Surge Protection” outlets keep a computer system running when the power goes out.
4. “Staged Charging” recharges your battery faster so it’s ready for the next power outage.
5. Push button Circuit Breaker enables quick recovery from overloads.
6. 2 Year Limited Warranty, free technical phone and online support.
7. “Boost” Automatic Voltage Regulation (AVR) corrects undervoltages without draining the battery, saving battery life for power outages.
8. IEC-320 power connection, and two 1.8 meter long power cords included.
9. Easy to use “one step” battery connector.
![APC BR500CI-AS ( 500VA 300 Watts ) [BR500CI-AS] - back ups which has 3 IEC sockets and small size](images/apc br500ci-as.jpg)

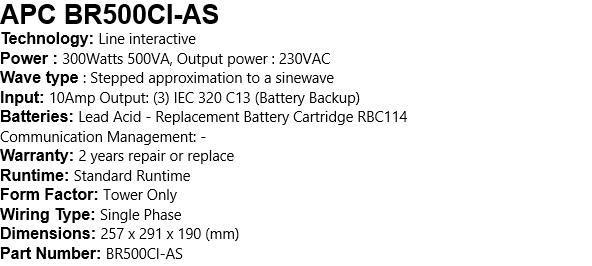

BR500CI-AS apc
APC Back UPS : Tower Model
Output
Output power capacity 300Watts / 500VA
Max Configurable Power (Watts) 300Watts / 500VA
Nominal Output Voltage 230V
Output Frequency (sync to mains) 47 - 63 Hz
Topology Line Interactive
Waveform type Stepped approximation to a sinewave
Output Connections (3) IEC 320 C13 (Battery Backup)
Transfer Time 6ms typical : 10ms maximum
Input
Nominal Input Voltage 230V
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections IEC-320 C14
Cord Length 1.83meters
Number of Power Cords 1
Batteries
Battery type Maintenance-free sealed Lead-Acid battery
with suspended electrolyte : leakproof
Typical recharge time 10hour(s)
Replacement Battery APCRBC125
RBC Quantity 1
Battery Volt-Amp-Hour Capacity 73
Communications & Management
Audible Alarm
Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating 240Joules
Physical
Maximum Height 185mm , 18.5cm, Width 115mm , 11.5cm, Depth 213mm , 21.3cm
Net Weight 4.9kg
Color Black
Environmental
Operating Environment 0 - 40 C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0-3000meters
Storage Temperature -15 - 45 C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0-15000meters
Conformance
Standard warranty 2 years - onsite service


ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
Thailand
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
เครื่องสำรองไฟ apc รุ่น br500ci-as เป็นเครื่องสำรองไฟรุ่นเล็กที่มีขีดความสามารถในการสำรองไฟ ได้ ถึง 300 watts เหมาะกับเครื่องcomputer ,notebook และอุปกรณ์ที่กินไฟ ไม่มาก apc br500ci-as เป็นเครื่องสำรองไฟ ที่ลูกค้าสามารถเปลี่ยน battery เองได้ ไม่ยาก ใช้ battery 1 ลูก อายุการใช้งานของเครื่อง
ประมาณ 2 - 3 ปี ขึ้นอยุ่กับลักษณะการใช้งาน และสภาพแวดล้อมการใช้งาน
