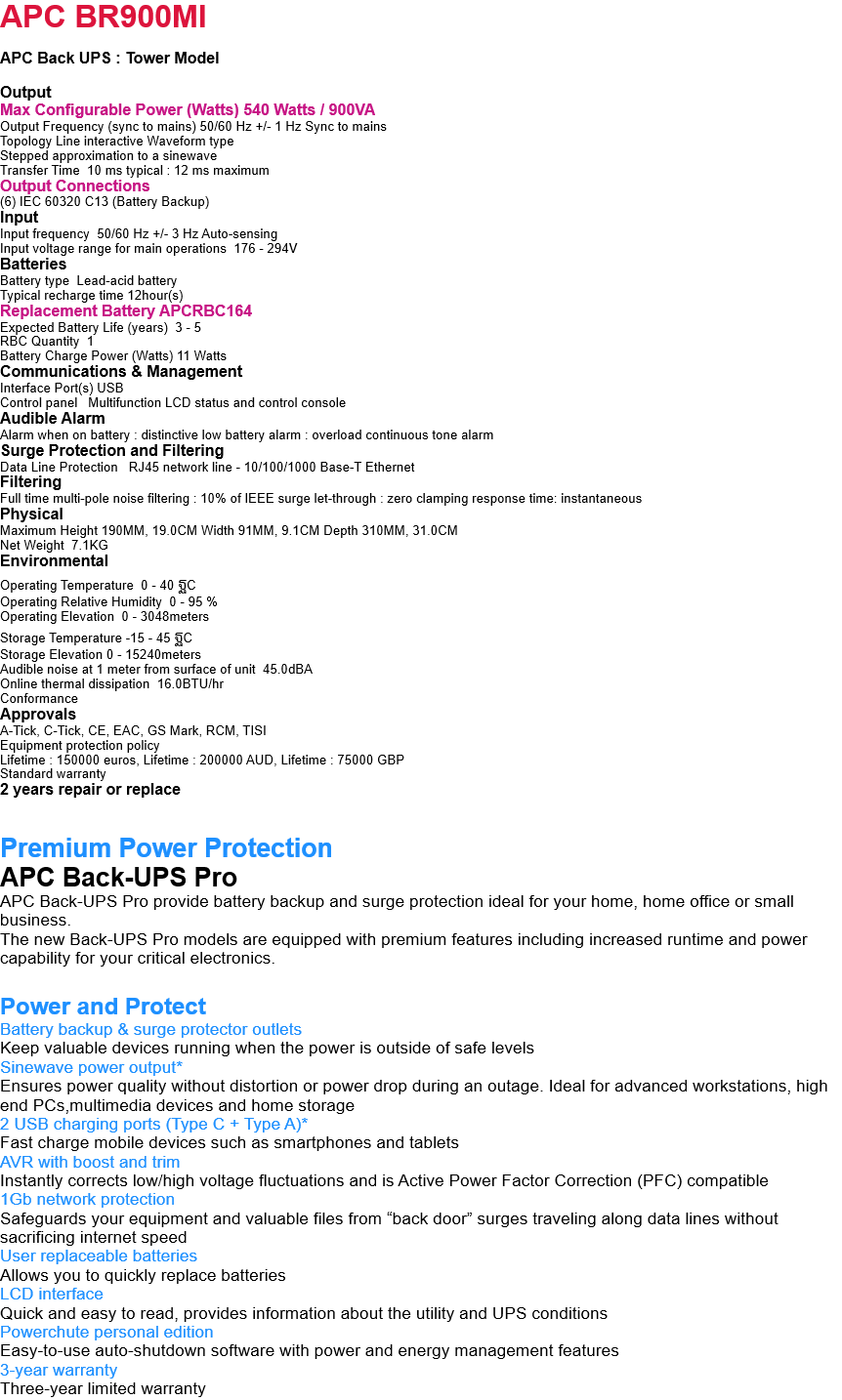

APC BR900MI
Max Configurable Power (Watts) 540 Watts / 900VA
Output Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains
Topology Line interactive Waveform type
Stepped approximation to a sinewave
Transfer Time 10 ms typical : 12 ms maximum
Output Connections
(6) IEC 60320 C13 (Battery Backup)
Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 176 - 294V
Battery type Lead-acid battery
Typical recharge time 12hour(s)
Replacement Battery APCRBC164
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Battery Charge Power (Watts) 11 Watts
Interface Port(s) USB
Control panel Multifunction LCD status and control console
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Data Line Protection RJ45 network line - 10/100/1000 Base-T Ethernet
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Maximum Height 190MM, 19.0CM Width 91MM, 9.1CM Depth 310MM, 31.0CM
Net Weight 7.1KG
Operating Temperature 0 - 40 ฐC
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -15 - 45 ฐC
Storage Elevation 0 - 15240meters
Audible noise at 1 meter from surface of unit 45.0dBA
Online thermal dissipation 16.0BTU/hr
Conformance
A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI
Equipment protection policy
Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP
Standard warranty
2 years repair or replace
Premium Power Protection
APC Back-UPS Pro provide battery backup and surge protection ideal for your home, home office or small business.
The new Back-UPS Pro models are equipped with premium features including increased runtime and power capability for your critical electronics.
Power and Protect
Battery backup & surge protector outlets
Keep valuable devices running when the power is outside of safe levels
Sinewave power output*
Ensures power quality without distortion or power drop during an outage. Ideal for advanced workstations, high end PCs,multimedia devices and home storage
2 USB charging ports (Type C + Type A)*
Fast charge mobile devices such as smartphones and tablets
AVR with boost and trim
Instantly corrects low/high voltage fluctuations and is Active Power Factor Correction (PFC) compatible
1Gb network protection
Safeguards your equipment and valuable files from “back door” surges traveling along data lines without sacrificing internet speed
User replaceable batteries
Allows you to quickly replace batteries
LCD interface
Quick and easy to read, provides information about the utility and UPS conditions
Powerchute personal edition
Easy-to-use auto-shutdown software with power and energy management features
3-year warranty
Three-year limited warranty
APC Back UPS : Tower Model
Output
Max Configurable Power (Watts) 540 Watts / 900VAOutput Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains
Topology Line interactive Waveform type
Stepped approximation to a sinewave
Transfer Time 10 ms typical : 12 ms maximum
Output Connections
(6) IEC 60320 C13 (Battery Backup)
Input
Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 176 - 294V
Batteries
Battery type Lead-acid battery
Typical recharge time 12hour(s)
Replacement Battery APCRBC164
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Battery Charge Power (Watts) 11 Watts
Communications & Management
Interface Port(s) USB
Control panel Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Data Line Protection RJ45 network line - 10/100/1000 Base-T Ethernet
Filtering
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height 190MM, 19.0CM Width 91MM, 9.1CM Depth 310MM, 31.0CM
Net Weight 7.1KG
Environmental
Operating Temperature 0 - 40 ฐC
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -15 - 45 ฐC
Storage Elevation 0 - 15240meters
Audible noise at 1 meter from surface of unit 45.0dBA
Online thermal dissipation 16.0BTU/hr
Conformance
Approvals
A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI
Equipment protection policy
Lifetime : 150000 euros, Lifetime : 200000 AUD, Lifetime : 75000 GBP
Standard warranty
2 years repair or replace
Premium Power ProtectionAPC Back-UPS Pro
APC Back-UPS Pro provide battery backup and surge protection ideal for your home, home office or small business.
The new Back-UPS Pro models are equipped with premium features including increased runtime and power capability for your critical electronics.
Power and Protect
Battery backup & surge protector outlets
Keep valuable devices running when the power is outside of safe levels
Sinewave power output*
Ensures power quality without distortion or power drop during an outage. Ideal for advanced workstations, high end PCs,multimedia devices and home storage
2 USB charging ports (Type C + Type A)*
Fast charge mobile devices such as smartphones and tablets
AVR with boost and trim
Instantly corrects low/high voltage fluctuations and is Active Power Factor Correction (PFC) compatible
1Gb network protection
Safeguards your equipment and valuable files from “back door” surges traveling along data lines without sacrificing internet speed
User replaceable batteries
Allows you to quickly replace batteries
LCD interface
Quick and easy to read, provides information about the utility and UPS conditions
Powerchute personal edition
Easy-to-use auto-shutdown software with power and energy management features
3-year warranty
Three-year limited warranty
![[BR900MI] UPS “APC” Back UPS Pro BR 900VA/540Watt, 6 Outlets, AVR, LCD Interface. Output Power Capacity, 540 Watts / 900VA. Nominal Output Voltage, 230V.](images/br900mi.jpg "apc br900mi")
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
Thailand
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
apc br900mi เป็นเครื่องสำรองไฟ ที่มาแทน apc br900gi คุณสมบัติ และลักษณะจะคล้ายตัวเดิม br900mi รุ่นนี้ มี port - USB , RJ45 การแสดงผลจะเป็น LCD แสดงสถานะต่างๆ รวมถึงเครื่องสำรองไฟรุ่นนี้ มี software ช่วยในการ monitor และการรับประกัน เหมือนรุ่นเดิม คือ 3 ปี onsite service
