[smc1500i-2uc]

APC SMC1500I-2UC

APC Smart-UPS C, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 outlets,
SmartConnect port, USB and Serial communication, AVR, Graphic LCD

Output

Output Voltage Distortion : Less than 5% at full load
Nominal Output Voltage: 230V
Output Frequency (sync to mains) : 57 - 63 Hz for 60 Hz nominal
Output Connections : (4) IEC 320 C13 (Battery Backup)
Max Configurable Power (Watts) : 900 Watts / 1.5 kVA
Output power capacity : 900 Watts / 1.5 kVA
Topology : Line Interactive
Waveform type : Sine wave
Transfer Time : 2ms typical

Input

Number of Power Cords : 1
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input voltage adjustable range for mains operation : 170 - 300 V
Input voltage range for main operations : 180 - 287 V
Other Input Voltages : 220, 240
Input Connections : IEC-320 C14
Rack Height : 2 U

Battery

Typical recharge time : 3 hour(s)
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement Battery : APCRBC132 RBC Quantity : 1
Battery Volt-Amp-Hour Capacity : 260

Communication

Audible Alarm : Alarm when on battery : distinctive low battery alarm
: configurable delays
Control panel : Multi-function LCD status and control console
Emergency Power Off (EPO) : --
Interface Port(s) : USB

Runtime

Output power capacity : 900 Watts / 1.5 kVA
Surge Protection and Filtering
Surge energy rating: 459 Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through
: zero clamping response time : meets UL 1449

Physical

Maximum Height: 8.9 CM Width: 43.2 CM Depth: 45.7 CM
Rack Height: 2 U ,Net Weight: 28.64 KG

Environmental

Audible noise at 1 meter from surface of unit : 46.0 dBA
Operating Temperature : 0 - 40 ?C
Operating Elevation : 0-3000 meters
Operating Relative Humidity : 0 - 95 %
Storage Temperature : -15 - 45 ?C
Storage Elevation : 0-15000 meters
Storage Relative Humidity : 0 - 95 %
Online thermal dissipation : 90.0 BTU/hr

Conformance

Approvals : C-tick, CE, GOST, VDE

Standard warranty : 3 Year Warranty Onsite Swap by APC Thailand

[SMC1500I-2UC APC]

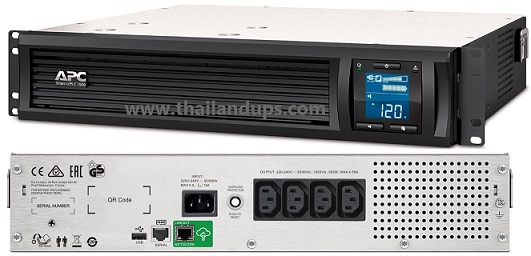

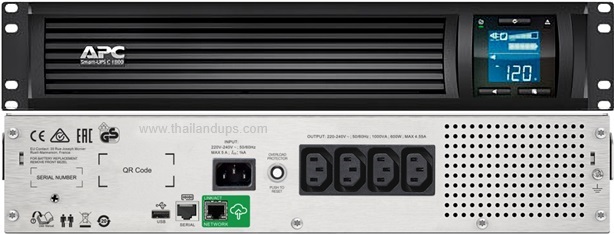

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1500VA/900W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 2U rackmount SMC has a SmartConnect port for cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and email notifications with recommended actions. The PowerChute Business Edition provides unattended shutdown of servers and workstations via serial or USB cables. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. This UPS has built-in lead-acid battery and is covered by a 2-year UPS warranty. Its dimensions are 477mm (depth) x 86mm (height) x 432mm (width) and weighs 28.64kg. Ideal for entry-level servers, networks, business VoIP, retail point-of-sale, and edge networks. It conforms to CE, C-Tick, GOST, VDE, and UL 1778.

เครื่องสำรองไฟ apc smc1500i-2uc มี function smartconnect เครื่องสำรองไฟรุ่นนี้เป็นแบบ rack ( แนวนอนไว้สำหรับเข้าตู้ rack ) กำลังไฟ 1500va 900 watts เป็น line interactive output ด้านหลังเครื่องมี 4 ช่องเป็น IEC เครื่องรุ่นนี้ เหมาะกับ server , เครื่อง DVR (เครื่องบันทึก) กล้องวงจรปิด การรับประกัน 3 ปี onsite service ทั่วประเทศ
