APC SMT1000IC
APC Smart-UPS : Tower Model
Max Configurable Power (Watts) 700 Watts / 1.0kVA
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 5 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages 220 V, 240 V
Topology Line interactive
Waveform type Sine wave
Transfer Time 6 ms typical : 10 ms maximum
Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 151 - 302 Adjustable, 160 - 286V
Other Input Voltages 220 V, 240 V
Battery type Lead-acid battery
Typical recharge time 3hour(s)
Replacement Battery RBC6
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Battery Charge Power (Watts) 88 Watts
Interface Port(s) SmartSlot, USB
Control panel Multifunction LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm :
overload continuous tone
Emergency Power Off (EPO) Optional
Available SmartSlot? Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 459Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Maximum Height 219MM, 21.9CM
Maximum Width 171MM, 17.1CM
Maximum Depth 439MM, 43.9CM
Net Weight 19.4KG
Color Black
Operating Temperature 0 - 40 ?C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -15 - 45 ?C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 15240meters
Audible noise at 1 meter from surface of unit 41.0dBA
Online thermal dissipation 70.0BTU/hr
Conformance
Approvals CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
part number apc smt1000ic
Warranty 3 years warranty - Onsite service
Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery
Sustainable Offer Status
RoHS Compliant
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

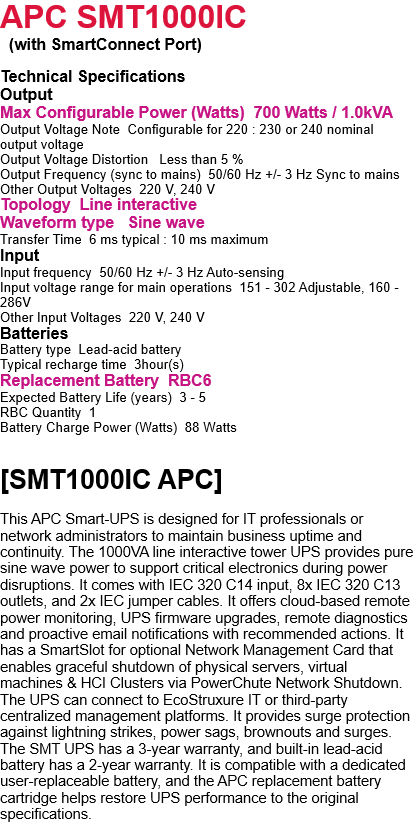

APC Smart-UPS : Tower Model
APC Smart-UPS 1000VA, Tower, LCD 230V with SmartConnect Port
Technical Specifications
Output
Max Configurable Power (Watts) 700 Watts / 1.0kVA
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 5 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages 220 V, 240 V
Topology Line interactive
Waveform type Sine wave
Transfer Time 6 ms typical : 10 ms maximum
Input
Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 151 - 302 Adjustable, 160 - 286V
Other Input Voltages 220 V, 240 V
Batteries
Battery type Lead-acid battery
Typical recharge time 3hour(s)
Replacement Battery RBC6
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Battery Charge Power (Watts) 88 Watts
Communications & Management
Interface Port(s) SmartSlot, USB
Control panel Multifunction LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm :
overload continuous tone
alarm
Emergency Power Off (EPO) Optional
Available SmartSlot? Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 459Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 219MM, 21.9CM
Maximum Width 171MM, 17.1CM
Maximum Depth 439MM, 43.9CM
Net Weight 19.4KG
Color Black
Environmental
Operating Temperature 0 - 40 ?C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -15 - 45 ?C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 15240meters
Audible noise at 1 meter from surface of unit 41.0dBA
Online thermal dissipation 70.0BTU/hr
Conformance
Approvals CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
part number apc smt1000ic
Warranty 3 years warranty - Onsite service
Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery
Sustainable Offer Status
RoHS Compliant
[SMT1000IC APC]
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
