[smt1000rmi2uc]

[SMT1000RMI2UC]

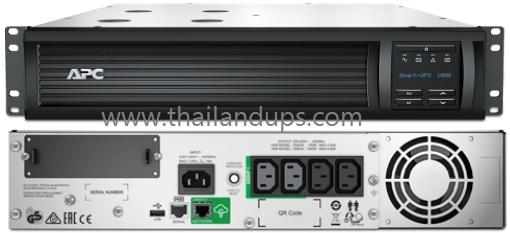

APC Smart-UPS, Line Interactive, 1000VA, Rackmount 2U, 230V,
4x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD
Part number SMT1000RMI2UC

Outpu

t
Max Configurable Power (Watts) 700 Watts / 1.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 5 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages 220 V, 240 V
Topology Line interactive
Waveform type Sine wave
Transfer Time 6 ms typical : 10 ms maximum

Input

Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 151 - 302 Adjustable, 160 - 286V
Number of Power Cords 1
Other Input Voltages 220 V, 240 V

Batteries

Battery type Lead-acid battery
Typical recharge time 3hour(s)
Replacement Battery APCRBC157
Expected Battery Life (years) 4 - 6
RBC Quantity 1
Battery Charge Power (Watts) 112 Watts

Communications & Management

Interface Port(s) RJ-45 Serial, SmartSlot, USB
Control panel
Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional
Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering

Surge energy rating 459Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through
: zero clamping response time : meets UL 1449

Physical

Maximum Height 86MM, Width 432MM, Depth 477MM
Net Weight 22.5KG
Color Black

Environmental

Operating Temperature 0 - 40 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 15240meters
Audible noise at 1 meter from surface of unit 45.0dBA
Online thermal dissipation 56.0BTU/hr
Conformance
Approvals CSA, EAC, RCM, VDE

Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

APC Smart-UPS, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCDPart number SMT1000RMI2UC
