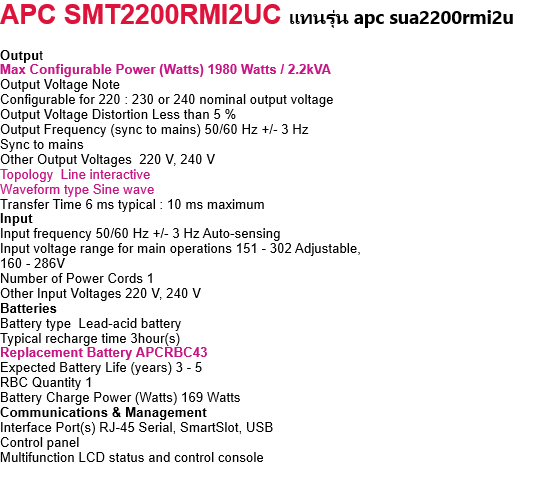

![[smt2200rmi2uc] - rack model](images/apc smt2200rmi2uc.jpg "APC SMT2200RMI2UC")
[SMT2200RMI2UC]
APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V,
Max Configurable Power (Watts) 1980 Watts / 2.2kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 5 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages 220 V, 240 V
Topology Line interactive
Waveform type Sine wave
Transfer Time 6 ms typical : 10 ms maximum
Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 151 - 302 Adjustable, 160 - 286V
Number of Power Cords 1
Other Input Voltages 220 V, 240 V
Battery type Lead-acid battery
Typical recharge time 3hour(s)
Replacement Battery APCRBC43
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Battery Charge Power (Watts) 169 Watts
Interface Port(s) RJ-45 Serial, SmartSlot, USB
Control panel
Multifunction LCD status and control console
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional
Available SmartSlot™ Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 375 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through
: zero clamping response time : meets UL 1449
Maximum Height 86MM, Width 432MM, Depth 684 MM
Net Weight 42.31KG
Color Black
Operating Temperature 0 - 40 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 15240meters
Audible noise at 1 meter from surface of unit 55.0dBA
Online thermal dissipation 215.0BTU/hr
Conformance
Approvals CSA, EAC, RCM, VDE
Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery
APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Documentation CD, Rack mounting hardware, Rack mounting support rails, USB cable
Part number : smt2200rmi2uc - with smart connect
APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V,
8x IEC C13+2x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD
Part number SMT2200RMI2UC
Outpu
tMax Configurable Power (Watts) 1980 Watts / 2.2kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 5 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages 220 V, 240 V
Topology Line interactive
Waveform type Sine wave
Transfer Time 6 ms typical : 10 ms maximum
Input
Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 151 - 302 Adjustable, 160 - 286V
Number of Power Cords 1
Other Input Voltages 220 V, 240 V
Batteries
Battery type Lead-acid battery
Typical recharge time 3hour(s)
Replacement Battery APCRBC43
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Battery Charge Power (Watts) 169 Watts
Communications & Management
Interface Port(s) RJ-45 Serial, SmartSlot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional
Available SmartSlot™ Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 375 JoulesFiltering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through
: zero clamping response time : meets UL 1449
Physical
Maximum Height 86MM, Width 432MM, Depth 684 MM
Net Weight 42.31KG
Color Black
Environmental
Operating Temperature 0 - 40 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 15240meters
Audible noise at 1 meter from surface of unit 55.0dBA
Online thermal dissipation 215.0BTU/hr
Conformance
Approvals CSA, EAC, RCM, VDE
Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery
APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCDIntelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Documentation CD, Rack mounting hardware, Rack mounting support rails, USB cable
Part number : smt2200rmi2uc - with smart connect
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
Thailand
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
เครื่องสำรองไฟ apc smt2200mri2uc เป็นเครื่องสำรองไฟ ที่มีฟังก์ชั่น smartconnect ที่สามารถดูสถานะผ่าน cloud รุ่นนี้เป็นแบบ rack เหมาะกับ computer, server และอุปกรณ์ทางการแพทย์ apc smt2200rmi2uc มีกำลังไฟที่ 2200va 1980 วัตต์ ระบบไฟเป็นแบบ line interactive ส่วน output ด้านหลังมี 8 ช่อง ( IEC socket ) การรับประกัน 3 ปี onsite service
