[smt3000ic] APC SMT3000IC ( 3000VA 27000 WATTS ) True online ups

[APC SMT3000IC]

APC Smart-UPS 3000VA, Tower, LCD 230V with SmartConnect Port

part number smt3000ic

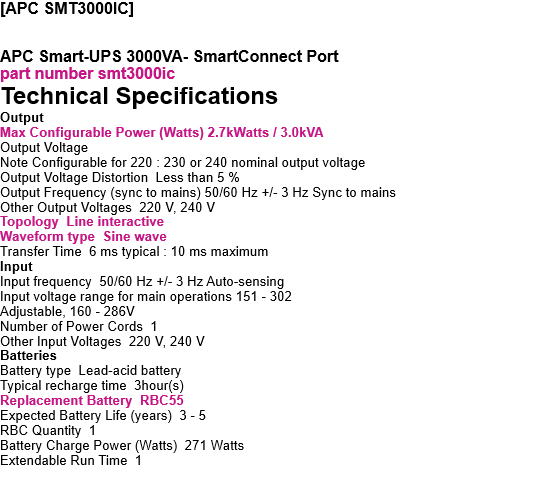

Technical Specifications

Output

Max Configurable Power (Watts) 2.7kWatts / 3.0kVA
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 5 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages 220 V, 240 V
Topology Line interactive
Waveform type Sine wave
Transfer Time 6 ms typical : 10 ms maximum

Input

Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 151 - 302 Adjustable, 160 - 286V
Number of Power Cords 1
Other Input Voltages 220 V, 240 V

Batteries

Battery type Lead-acid battery
Typical recharge time 3hour(s)
Replacement Battery RBC55
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Battery Charge Power (Watts) 271 Watts
Extendable Run Time 1

Communications & Management

Interface Port(s) SmartSlot, USB
Control panel Multifunction LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Yes
Available SmartSlot? Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 365Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height 435MM, 43.5CM
Maximum Width 197MM, 19.7CM
Maximum Depth 544MM, 54.4CM
Net Weight 52.5KG
Color Black

Environmental

Operating Temperature 0 - 40 ?C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -15 - 45 ?C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 15240meters
Audible noise at 1 meter from surface of unit 53.0dBA
Online thermal dissipation 375.0BTU/hr

Conformance

Approvals CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status
RoHS Compliant

เครื่องสำรองไฟ apc smt3000ic มี function smartconnect เครื่องสำรองไฟ รุ่นนี้ มี กำลังไฟ 2700 วัตต์ 3000VA ระบบไฟเป็นแบบ line interactive มีจอ LCD แสดงสถานะของเครื่อง พร้อม surge protection apc smt3000ic รุ่นนี้เหมาะกับ server, computer, medical equipment รายละเอียดเพิ่มเติมสามารถติดต่อ ได้เลยค่ะ
