Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V,
6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Main Input Voltage  230 V ,400 V 3 phases
Other Input Voltage 220 V,240 V,380 V,415 V
Main Output Voltage 230 V
Other Output Voltage 220 V,240 V
Rated power in 10000 W
Rated power in 10000 VA
output connection type
6 IEC 60320 C13,3 IEC Jumpers, 4 IEC 60320 C19
output connector type  Hard wire 3-wire (H N + E) 1
battery type  Lead-acid battery
provided equipment

CD with software,Documentation CD,Installation guide,Temperature probe,
USB cable,Warranty card,Web/SNMP management card

product web sub-family   High density
Number of power module free slots   0
Number of power module filled slots  0
Redundant  No

colour Black
Height 43.2 cm width 26.3 cm Depth 71.5 cm, Net weight 111.82 kg
mounting location  Front
mounting preference  No preference
mounting mode  Rack-mounted with kit
Two post mountable  0
USB compatible  Yes

network frequency  40...70 Hz auto-sensing
number of input connectors
1 hard wire 3-wire (1P + N + E)
1 hard wire 5-wire (3P + N + E)
input voltage limits
100...275 V adjustable (half load)
173...476 V adjustable (half load)

Maximum configurable power in 10000 W
Harmonic distortion  Less than 2 %
output frequency 50/60 Hz +/- 3 Hz sync to mains
crest factor 3 : 1
UPS type  Double conversion online
Wave type Sine wave

bypass type  Internal bypass (automatic and manual)
Maximum configurable power in 10000 VA

product certifications CE, EAC,IRAM,RCM,VDE
Marking CE Mark

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Ambient air temperature for operation 0…40 °C
relative humidity 0…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
storage Relative Humidity 0…95 % Non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level  55 dBA
Heat dissipation 1947 Btu/h
IP degree of protection  IP20

number of battery filled slots 0
Battery recharge time 1.5 h
number of battery replacement quantity  2
Battery voltage +/- 192 V (split battery referenced to neutral)
battery charger power  876 W rated
Battery power in VAH  1805 VAh runtime
Battery life  3…5 year(s)
Replacement battery APCRBC140
battery option
SRT192BP2 1 3610 VAh
SRT192BP2 2 5415 VAh
SRT192BP2 3 7220 VAh
SRT192BP2 4 9025 VAh
SRT192BP2 5 10830 VAh
SRT192BP2 6 12635 VAh
SRT192BP2 8 16245 VAh
SRT192BP2 10 19855 VAh
extended runtime  1
Communications & Management

Free slots  1
Control panel
Multifunction LCD status and control console

Audible and visible alarms prioritized by severity
Emergency power off   Yes
Surge Protection and Filtering
Surge energy rate  480 J
Contractual warranty

Warranty 3 years repair or replace (excluding battery) and 2 years for battery

Smart-UPSTM On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 1 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. The included PowerChuteTM Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
apc srt10kxli - ture online ups
apc srt10kxli
apc srt10kxli - apc srt10000xli apc srt10kxli - apc srt10000xli
เครื่องสำรองไฟ ราคาพิเศษ - apc srt10kxli
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่  088 758 4005    080 964 2745    096 308 9747    088 758 4003    088 758 4005    080 964 2745


ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
เครื่องสำรองไฟ apc srt10kxli หรือ apc srt10000xli เรียกได้ทั้ง 2 แบบแต่เป็นรุ่นเดียวกัน apc ups รุ่นนี้เป็นรุ่นที่ ขายดี เครื่องสำรองไฟ รุ่นนี้มีกำลังไฟ 10kVA 10kWatts ระบบไฟ เป็นแบบ true online ups , srt10kxli รุ่นนี้ สามารถเพิ่ม backup time , single phase หรือ 3 phase  ลูกค้าสามารถเลือกได้ ติดตั้งฟรี ทั่วประเทศ

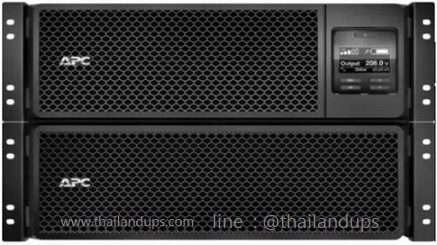

apc srt10000xli หรือ apc srt10kxli - true online ups - ภาพใน rack
